Graffoo
Graphical Framework for OWL Ontologies
The full specification is available at http://www.essepuntato.it/graffoo/specification/.

Graffoo, a Graphical Framework for OWL Ontologies, is an open source tool that can be used to present the classes, properties and restrictions within OWL ontologies, or sub-sections of them, as clear and easy-to-understand diagrams. Several Graffoo diagrams have been developed to explain, e.g., SPAR ontologies - that are to be found in the appropriate ontology directories - and the Argument Model Ontology, shown in Figure 1.

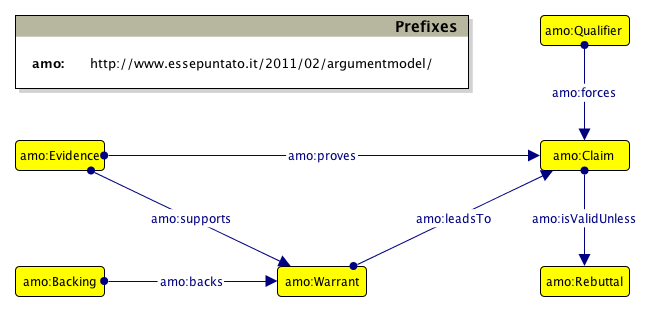

A section of the Argument Model Ontology explaining what is an argument

Figure 1: The definition of the classes involved in an argument.

The advantages of using such a Grafoo diagram are thus that it displays the logical relationships between elements of an ontology, or a sub-section of an ontology, in a manner that is relatively straightforward to understand, once one has grasped the meaning of the different elements of a Graffoo diagram. These elements are shown and defined in the Graffoo key (Figure 2) and fully presented in the official specification.

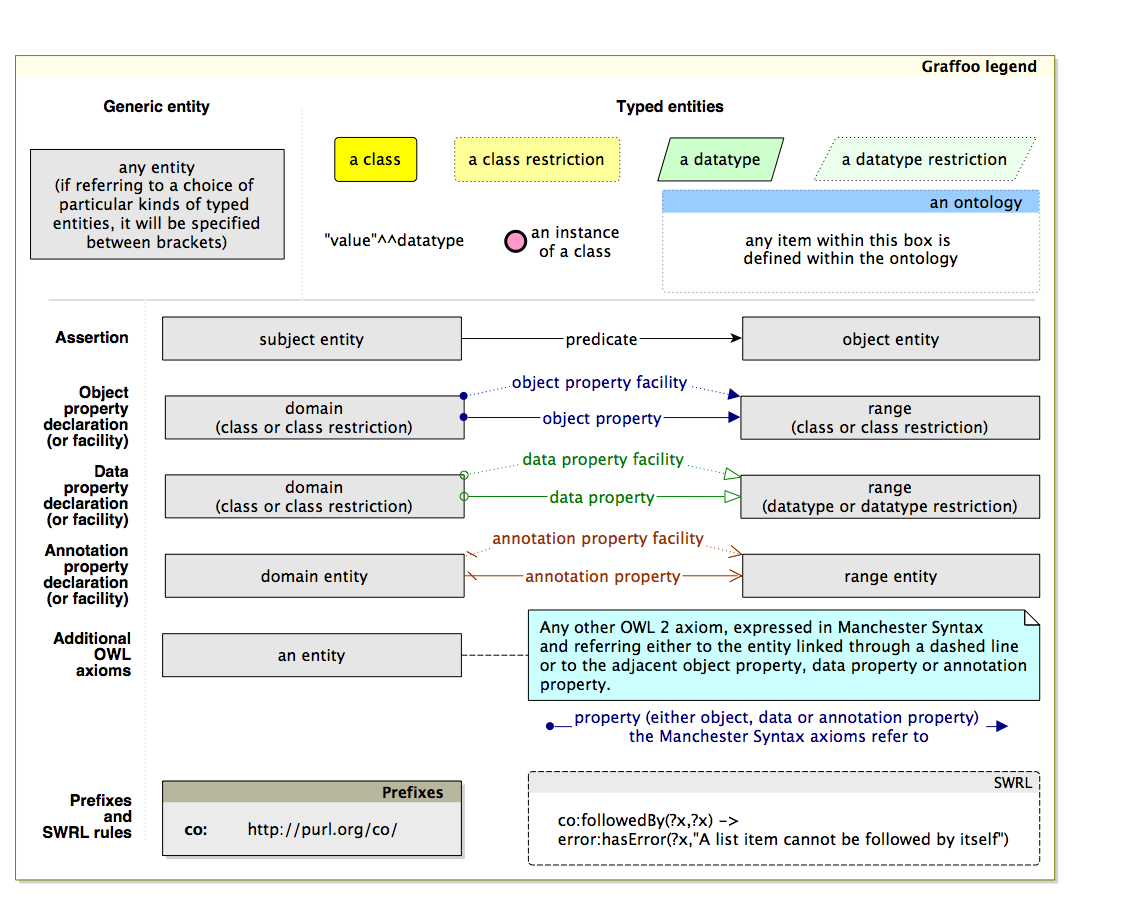

All the possible Graffoo objects

Figure 2: The legend for all possible Graffoo objects

Preliminary empirical studies, it appears that Graffoo allows to create representations of OWL ontologies that can be comprehended in detail without the person viewing them having to understand the details of OWL 2 or of any of its linearizations (Turtle, RDF/XML, Manchester Syntax, or OWL/XML).

How to install Graffoo

Graffoo has been developed using the standard library of the yEd diagram editor, a free diagram editor running on Windows, Mac and Linux. The graphml format version of those Graffoo objects is also available. It can be imported as new Section of the yEd Palette.

To install Graffoo, please follow the following steps:

  1. install yEd, a free diagram editor tool;
  2. download the Graffoo.graphml file;
  3. import it as a palette on yEd - Click on Edit -> Manage Palette -> Import Section, then select the downloaded file, add it, and include it in the available palettes;
  4. start creating diagrams!

Luigi Asprino has recently developed also a draw.io palette for Graffoo. Please follow the following steps to use it:

  1. create/open a diagram in draw.io;
  2. import it as a palette on draw.io - Click on File -> Open Library from -> URL
  3. insert URL https://raw.githubusercontent.com/luigi-asprino/Graffoo4DrawIO/master/Graffoo.xml;
  4. start creating diagrams!

About the author

Silvio Peroni (Ph.D.) is an Assistant Professor at the Department of Classical Philology and Italian Studies, University of Bologna.
